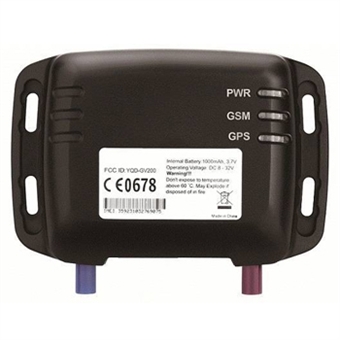

GV200

The GV200 is a powerful GPS Locator designed for vehicle tracking applications. With superior receiving sensitivity, fast TTFF (Time to First Fix) and Quad-Band GSM frequencies 850/900/1800/1900, its location can be monitored in real time or periodically tracked by a backend server or other specified terminals. GV200 has Multiple input/output interfaces which can be used for monitoring or controlling external devices. Based on the integrated @Track protocol, GV200 can communicate with a backend server through the GPRS/GSM network to transfer reports of emergency, geo-fence boundary crossings, low battery or scheduled GPS position along with many other useful functions. System Integrators can easily setup their tracking systems based on the full-featured @Track protocol.

    Features
  • Wide operating voltage : 8 to 32V DC
  • Built in MTK GPS chipset with -165dBm tracking sensitivity, -147dBm autonomous sensitivity for fast TTFF and high accuracy
  • Low power consumption, long standby time with internal battery
  • Quad band GSM/GPRS frequencies 850/900/1800/1900MHz
  • Embedded full-featured @Track protocol
  • Multiple input/output interfaces for monitoring and control
  • Built in 3D motion sensor for power saving and motion detection
  • Three analog inputs for external sensor
  • Built in or optional external GSM antenna
  • Built in or optional external GPS antenna
